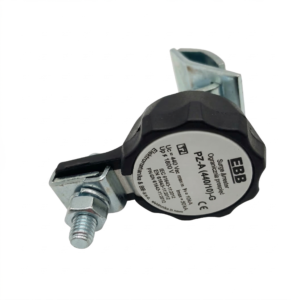

1. EBB Clamp-A
Type: Clamp for lines without insulation (naked line)
Conductor size: 16 – 120 mm²
Description:
Clamp-A is designed for connecting surge arresters to overhead power lines without insulation. It ensures a secure mechanical and electrical connection to bare conductors in low-voltage distribution systems.
Application:
Overhead distribution lines
Direct arrester mounting on bare conductors

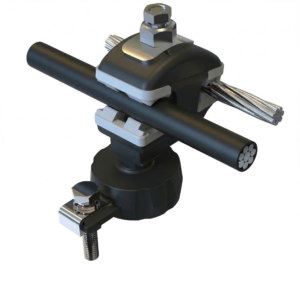

2. EBB Clamp-C SP33
Type: Insulated Piercing Connector
Main conductor: 16 – 120 mm²
Branch conductor (bare): 16 – 95 mm²
Description:
EBB SP33 insulated piercing connector creates electrical contact by piercing the insulation of LV ABC conductors while connecting an uninsulated branch conductor. The body is made from heat and UV-resistant plastic, and an elastomer insert prevents moisture from entering the contact points.
Key Features
Shear head nut (Zamak 5)
Torque range: 12 – 14 Nm
Electric contact grease protection
3. EBB Clamp-D SP22
Type: Insulated piercing connector for surge arrester installation
Conductor size: 10 – 150 mm² (Al or Cu)
Description:
Clamp-D SP22 allows installation of a surge arrester directly on insulated low-voltage power distribution networks. Contact plates penetrate insulation to ensure strong electrical contact with the conductor.
Features
Deep penetration contact plates
Grease-protected contacts
Installation possible under voltage with protective equipment
4. EBB Clamp-E SP44
Type: Insulation waterproof piercing connector
Main conductor: 10 – 150 mm² (Al/Cu)
Branch conductor: 1.5 – 70 mm² (Al/Cu)
Description:
Clamp-E SP44 simultaneously pierces insulation of both the main LV ABC conductor and branch conductor while allowing installation of a surge arrester. The connector body is made from UV-resistant plastic with elastomer sealing to prevent moisture and corrosion.
Features
Waterproof design
Heat & UV resistant body
Includes end caps for branch insulation
5. EBB Clamp-F
Type: Linear clamp for insulated conductor
Cable type: ASXS 16 mm²
Length: 200 mm
Description:
Clamp-F acts as a linear connection element for insulated conductors, allowing secure installation of surge protection systems on insulated overhead lines.
6. EBB Clamp-G
Type: Transformer clamp
Description:
Clamp-G is designed for direct connection of surge arresters to transformers, enabling efficient surge protection for transformer installations.
7. EBB Clamp-H
Type: Transformer clamp (TOGA type connection)
Description:
Clamp-H enables direct connection of surge arresters to TOGA-type transformer clamps, ensuring stable grounding and surge protection in transformer systems.
Grounding Cables (GR)
8. EBB Clamp-GR 6 mm²
Cable type: H07V-K grounding cable
Conductor: Flexible fine-stranded copper
Voltage: 450 / 750 V
Color: Green/Yellow or Black
Diameter: ~4.6 mm
Description:
High-quality grounding cable designed for surge protection systems with pre-installed M8 cable lug for easy installation.
9. EBB Clamp-GR 10 mm²
Cable type: H07V-K grounding cable
Conductor: Fine-stranded copper
Voltage: 450 / 750 V
Color: Black
Diameter: ~6.1 mm
Description:
Heavy-duty grounding cable designed for higher current loads in power distribution and surge protection systems.
